Model: PF 20090-DCE
16 Port OCTAL-Modem DCE, DTE, MDM

Description:

The 16 Port Octal Modem Patch Panel interfaces banks of 8 DB25 connectors on the front of the panel to 2 SCSI 68 position connectors on the rear. The panel is designed to work with Cisco® modules NM-16A and NM-32A, which are utilized on Cisco® 2600, 3620/40 and 3660 series routers. When ordering, please specify DCE, DTE or Modem.

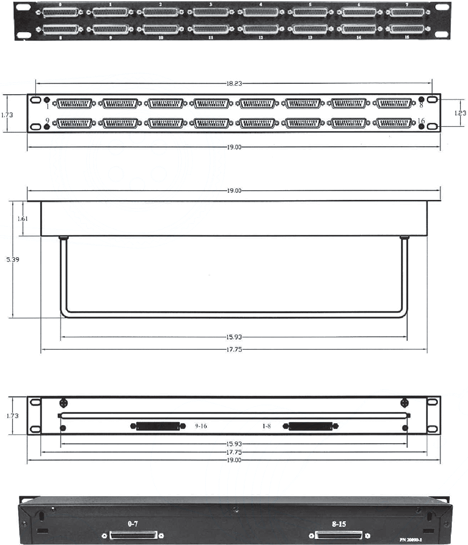

Dimensions:

• Height: 1.73"
• Width: 19.00"
• Depth: 5.39"
• 1RU (rack unit)

Benefits:

• Replaces Cables:
  CAB-OCTAL-DCE
  CAB-OCTAL-DTE
  CAB-OCTAL-MODEM
• PCB construction
• Economical
• Occupies only 1 RU (rack unit)

Specifications:

• P/N: PF 20090-DCE, DTE or MDM
• Patented: #6,302,742 B1
• EIA-310-D Compliant
• Built-in strain relief

Accessories:

• SCSI III Cables P/N: PF 20091S-XXX ('XXX' Denotes Length) Custom lengths available
• RS-232 cables Custom lengths available
• 23" Mounting bracket (optional) P/N: PF 20209
